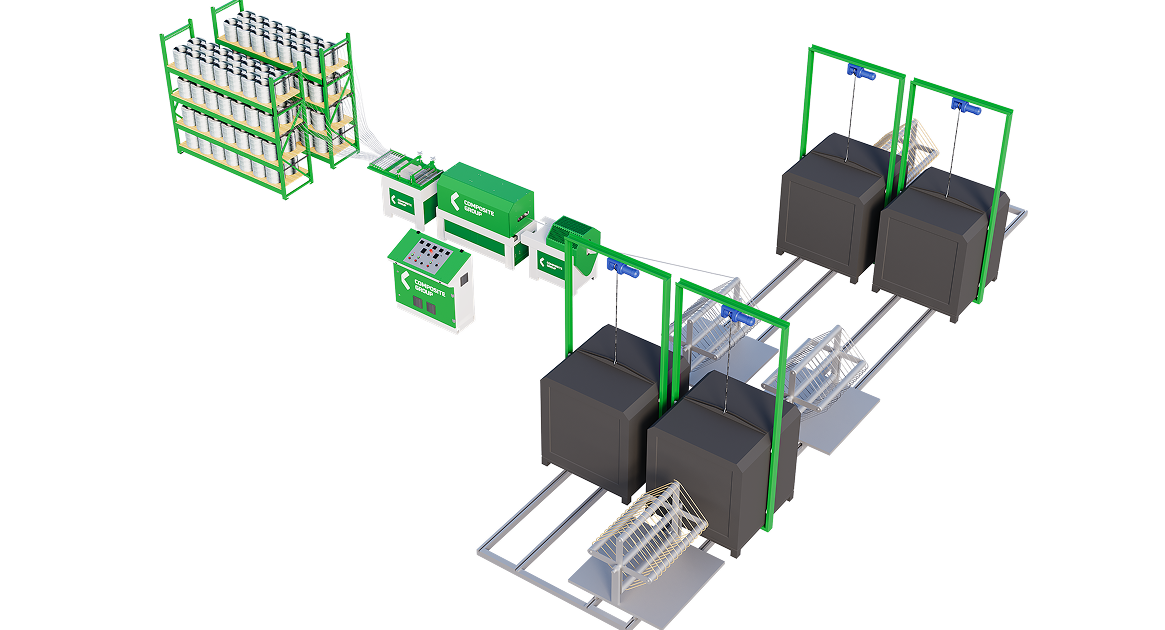

СG-8 Bent Element Production Line
Key Achievements
Certification
- ISO 9001:2015 TÜV AUSTRIA
Global Partnerships
- Joint venture in Brazil
- 3 agreements on JV creation in China
Production
- 3 generations of equipment
- 6 types of machine lines
- Delivered to 9 countries
Patent Portfolio
- 20 PCT patents for inventions
- 6 patents in India
- 4 patents in China
- National-level registration in progress in 14 countries
Innovation Award
Winner of the Bortnik Fund competition (2022) for innovative developments in composite technologies. Received a grant for R&D of an automated production line with minimal human participation.
Exporter of the Year
6× recipient of the award. In 2022, the CEO received the All-Russian Exporter of the Year Award at the Kremlin from Andrey Belousov, First Deputy Chairman of the Russian Government.
Looking into the CG-4 manufacturing line? Let’s talk numbers, technology, and fit.
We’re here to help you assess whether the CG-4 line is the right choice for your production.
Get a tailored cost estimate, see configuration options, and receive expert answers based on your project’s needs.
Get expert adviceContact Information
Phone:
Fax:
Email:
Roving:
- is coated with a silane-based sizing compatiblewith unsaturated polyester, vinyl ester, and epoxy resins. It is designed for filament winding, pultrusion, and weaving applications.
- should be stored in a cool and dry place. The temperature should not exceed 35 ° C, and the relative humidity should be maintained below 75%.
- must remain packed immediately before use. It is necessary to avoid damage to the packaging during storage. If moisture gets into it, it becomes unsuitable for further use.
Epoxy resin storage:
- save in cool, dry and well ventilated place.
- save applicable laws and regulations.
- avoid direct sunlight.
- no open fire.
- prevent static electricity and keep away from combustible materials or heat sources.
- collected them in sealed containers.
- store away from water and sewer.
MTHPA:
- significantly improves the technical characteristics of the finished product that is obtained as a result of solidification of the epoxy binder.
- characterized by high moisture resistance, chemical resistance, and electrical insulation properties of cured materials
- is capable of absorbing waterfrom the air
- dissolves perfectly in water and is converted into the appropriate acid. It is soluble in organic solvents (toluene, acetone, benzene), easily mixes with epoxy compounds.
Basic delivery set
Roving rack
included: 4 units
Holds and feeds fiber rovings into the production line in a stable and controlled manner.
Track pulling unit
included: 1 unit
Moves the FRP stream further along the line.
Control panel
included: 1 unit
Allows to customize the reinforcement diameter, and production speed.

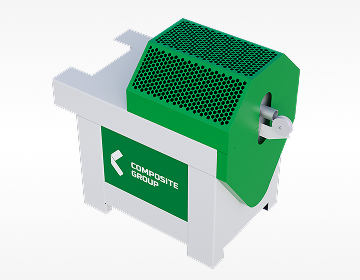

Periodic profile forming unit
included: 1 unit
Forms a ribbed surface of the reinforcement.

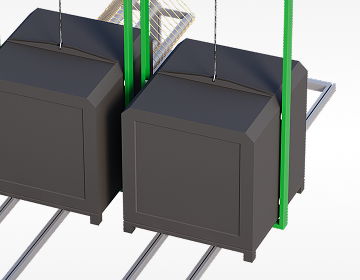

Polymerization chamber
included: 4 units
Has automatic temperature control and a protective box.

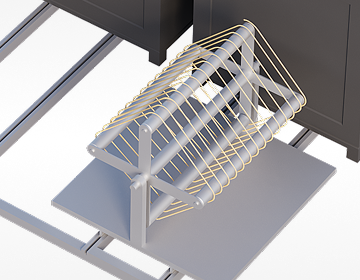

Forming stand
included: 4 units

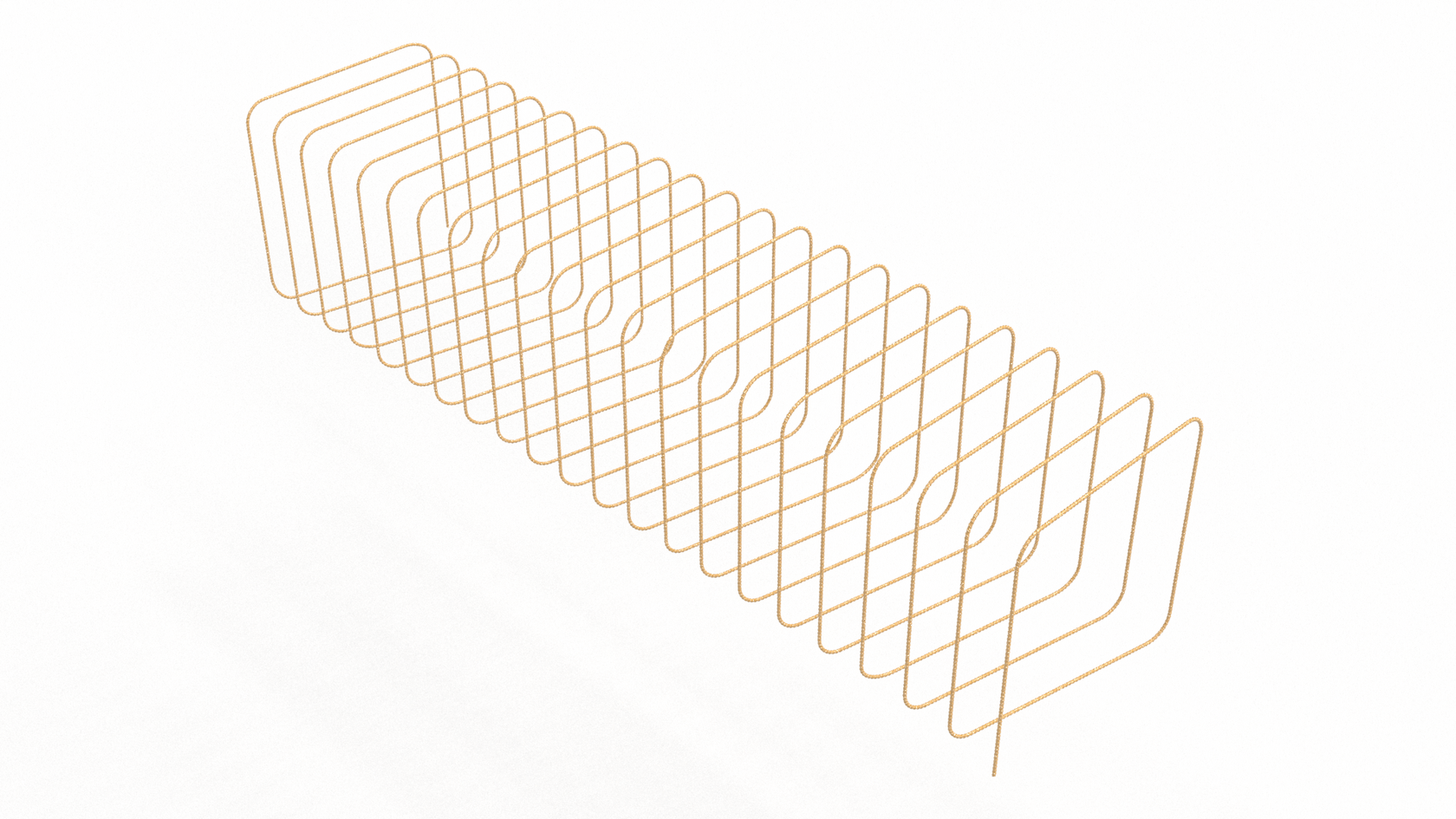

Forms and cools the FRP rebar until it hardens into any shapes.

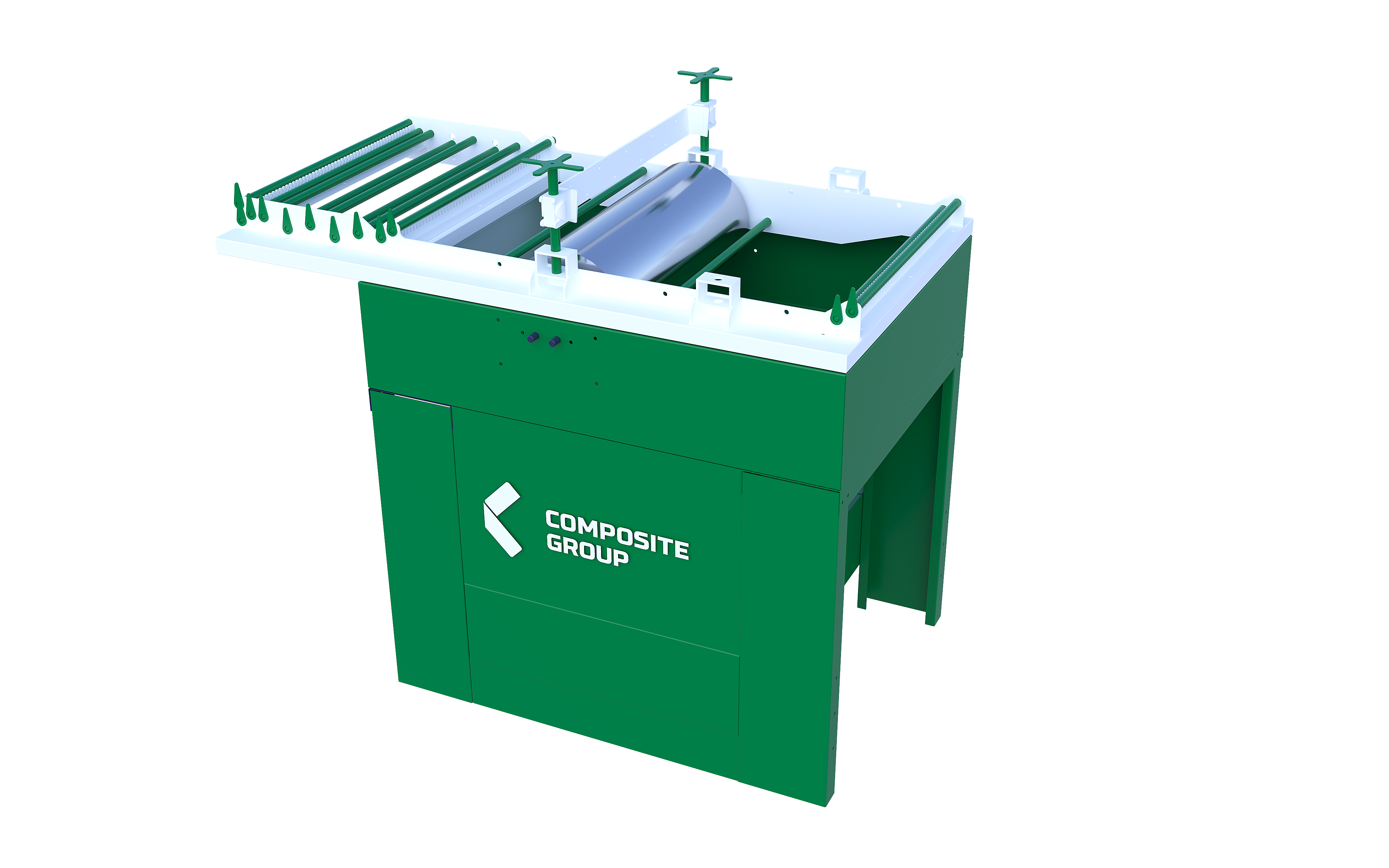

Impregnation and wringing unit
included: 1 unit
Impregnates fiberglass with a polymer mixture.
Manufactoring method
- Four-channel microwave polymerization and usage of high quality thermoregulators allow step-by-step heating. The presence of proportional-integral-differentiating regulation allows the furnace to operate in the most optimal mode. The operating temperature of the furnaces is up to 400°C. Heating elements are made of stainless steel, which significantly increases the service life and reduces energy consumption. The furnace is insulated with thermal insulation materials, which allows eliminating the deformation of the furnace structure. The surface of the oven is heated to 50°C.
- The heating system of the epoxy-polymer binder in the impregnation bath increases the life of the finished mixture. The roving thread pre-tensioner is equipped with a system for automatically alerting and disabling the pulling mechanism when the roving thread nodes are encounter.
- The line is equipped with a roving preheating system.
- The rollers and guides that are in direct contact with the reinforcing bar during production are made of St 45 steel. Ability to adjust the step of the periodic profile.
- The volume of each epoxy resin bath is 8 liters
- Possibility of quick replacement of the bath for the epoxy-polymer binder.
- Adjustable product drawing speed on the operator panel
- High-precision pulse counter for calculating the meter of finished products
-
Production speed:
2,000 m
per 24-hours shift (depending on the bar diameter) -
End product diameter range:
4-16 mm
Looking into the CG-4 manufacturing line? Let’s talk numbers, technology, and fit.
We’re here to help you assess whether the CG-4 line is the right choice for your production.
Get a tailored cost estimate, see configuration options, and receive expert answers based on your project’s needs.
Get expert adviceContact Information
Phone:
Fax:
Email:
СG-8 Bent Element Production Line Pricing
Base price
СG-8 Bent Element Production Line – RUB
Customized line – on request
Warranty – 12 months
Additional cost
Lead time
3 months from the date of prepayment
Payment terms
60% – advance payment prepayment, 40% – before shipment
RUB exchange rate
Note: Exchange rates are provided for reference only. Final pricing will be calculated based on the actual exchange rate at the time of agreement.
For more details, please refer to our sales office
